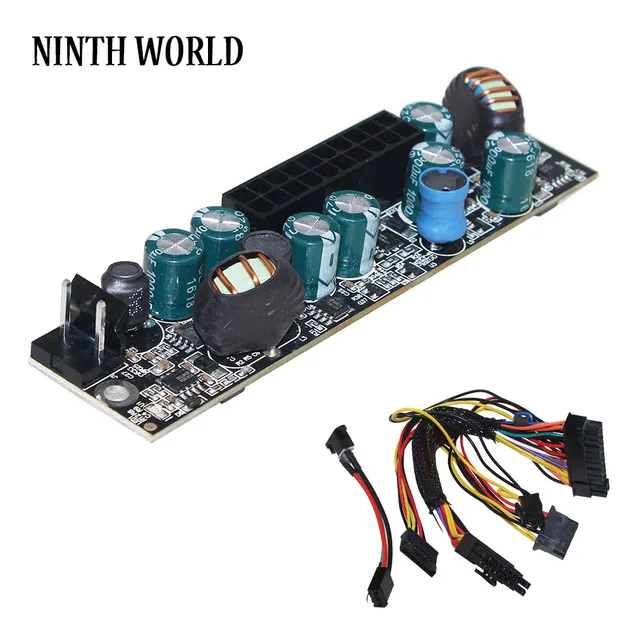

Best Offers - LR1007 12V 120W Switch Pico DC-DC PSU 24pin MINI ITX DC Car ATX PC Power Supply For Mini Computer Accessories Wonderfull
Sale - LR1007 12V 120W Switch Pico DC-DC PSU 24pin MINI ITX DC Car ATX PC Power Supply For Mini Computer Accessories Best Offers
Brand Name:
Ninth World
Type:
Power Cable
Model Number:
LR1007
Package:
Yes
model:
LR1007-120W12VDC
packing list:
Mini power supply *1, 24P line *1, DC line *1
Suitable:
Desktop
Power standard:
Mini DC-DC power board
Input characteristics:
Input voltage range: 11.4VDC - 12.6VDC
Input Current Range: 12.0A Max /11.2VDC
Input surge current: 12.0Amax/12VDC
Work efficiency: ≥85%
Output requirements:Five sets of power output ☆ test focus
Item | The output voltage | Output current(A) | |||||
Minimum value (V) | Typical value (V) | Maximum (V) | Ripple (mV) | stand-by current | Typical value | Peak | |
+3.30V | +3.14 | +3.30 | +3.47 | 50 | 0 | 8.0 | 10.0 |
+5.00VSB | +4.75 | +5.00 | +5.25 | 50 | 0.1 | 1.6 | 2.0 |
+5.00V | +4.75 | +5.00 | +5.25 | 50 | 0 | 8.0 | 10.0 |
+12.00V | +11.40 | 12.00 | +12.6 | 120 | 0 | 4.0 | 4.5 |
-12.00V | -11.40 | -12.00 | -12.6 | 120 | 0 | 0.1 | 0.15 |
Input and output interfaces:
Input plug definition: Output receptacle interface definition:
Protective function :
(For +3.3V, +12V, +5.00V and +5.00VSB power output)
Over-voltage protection: The output turns off when the output voltage reaches 1.5 times the rated voltage.
Short-circuit protection: When the output is short-circuited, the output is turned off.
Power timing:
Environmental description:
Operating temperature/humidity 15°C to 35°C / 45%-75%
Storage Temperature/Humidity -40°C to +70°C/ 10%-90%
Atmospheric pressure 86Kpa-106Kpa
Other parameters:
Operating frequency: IC built-in oscillator (250-350) kHz / Vcc = 12V
Feedback reference voltage: 0.8V±2%@12VDC
Structural parameters:
Packaging includes:
Mini power supply *1
24P line *1
DC line *1
